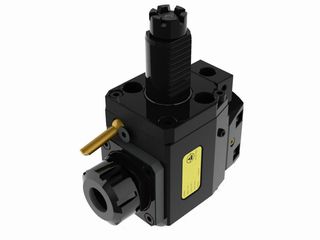

THB-B06.92-50DI VDI50-MT-ER40 徑向動力刀座 Int

產品介紹

m_prod2014042500057
◎ VDI50-MT-ER40 Radial Driven Tool Holder_Int.◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.◎ Further option : 6000 RPM.

THB-B06.92-50DI VDI50-MT-ER40 徑向動力刀座 Int



  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規格

◎ VDI50-MT-ER40 Radial Driven Tool Holder_Int.
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM.

◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM
◎ Internal Coolant：30 bar

Model No. A B C D E F G H I J K L M N N.W. (KG)
THB-B06.92-50DI 92 86 40 50 60 100 70/88 92.5 ER40(4~26) 63 18 68 84 136 9

Unit:mm
