AHA-SK50-ER32 90度角度頭

產品介紹

prod2014033000027
prod2014033000027aha-sk50-er32-80tempsnip_1540859833
◎ SK50-ER32 90° Angle Head (AHA Type)◎ Run-out：0.002 mm◎ Material：Ductile Cast Iron◎ R.P.M.：Max. 6000 RPM◎ Torque : Max. 50 Nm◎ Drilling : Max. 18 mm◎ Tapping : Max. M14◎ Gear Ratio：1：0.81◎ Standard Accessory：Hook Spanner, ER Wrench, ER Nut◎ Output Rotation : Reverse ...了解更多
  • 描述
  • IM_EXTRA_TAB_ADD1

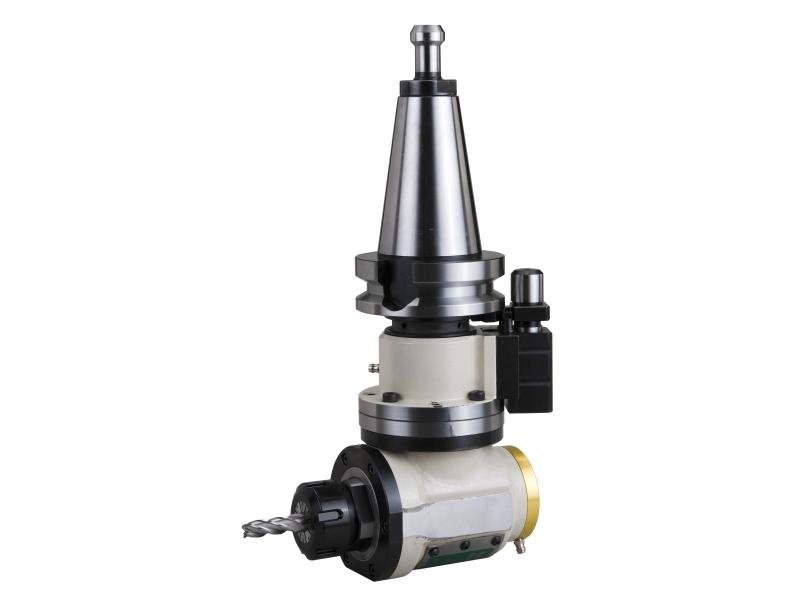

◎ SK50-ER32 90° Angle Head (AHA Type)
◎ Run-out：0.002 mm
◎ Material：Ductile Cast Iron
◎ R.P.M.：Max. 6000 RPM
◎ Torque : Max. 50 Nm
◎ Drilling : Max. 18 mm
◎ Tapping : Max. M14
◎ Gear Ratio：1：0.81
◎ Standard Accessory：Hook Spanner, ER Wrench, ER Nut
◎ Output Rotation : Reverse to Input Rotation

◎ The body is made of Ductile Cast Iron.?
◎ High strength steel; stable machining.
◎ Wide selections of tool shanks. The design of ER32, ER40, and FA25.4 heads ensures various applications.
◎ Can be automatic tool changed. Increases productivity.
◎ Suitable for light and middle cutting.
